    Brand Name : LGTO
    Certification : CE ,ROHS
    Model Number : LGTO-LH-80W
    Delivery Time : 7-15 days
    Payment Terms : T/T, Western Union or Paypal
    Supply Ability : 1000pcs/day
    • Product Details
    • Company Profile

    WW/NW/CW 80W led highbay light Bridgelux Chip Meanwell led driver

    WW/NW/CW 80W led highbay light Bridgelux Chip Meanwell led driver

    Features:
    Bridgelux or Epistar chip integrated COB LED, high brightness and long lifespan
    Color can be made: Warm white, Natural White, Cool White
    Aluminum alloy die-cast baking varnish heatsink, clear tempered glass, ensures good heat dissipation, life span is at least 50,000 hours
    Energy saving, compared with traditional sodium lights, it can save electricity more than 80%
    No ill glare; no abrupt and frequent flashes
    No delay start,no waiting. It can reach its normal light as soon as it is turned on, not require long time start process of traditional lights
    Environment friendly. Not contains lead, hydrargyrum, and any other contamination, no pollution, No radiation, recyclable.

    Characteristic:

    Product Name

    Led Highbay Light

    Model NO.

    LGTO-LH-80W

    Input Voltage:

    AC85~265V

    Frequency Range

    50Hz~60Hz

    Total Harmonic Distortion

    < 9%

    Power Factor

    >0.98

    LED Working Voltage

    DC30~36V

    LED

    1 pc Bridgelux or Epistar COB LED

    Power Consumption

    1*80W

    LED Luminous Efficiency

    80~110lm/W

    Beam Angle

    120 degree

    LED Initial Flux

    8000LM

    Lamp Efficiency

    >85%

    Illuminance Uniformity

    >0.6

    Color Temperature

    2700~7000K

    Color Rendering Index

    WW: Ra>68, PW,CW: Ra>75

    Light Distribution

    Sysmmetric/ Rectangle

    Junction Temperature

    <80 ℃

    Operation Temperature

    from -40 ℃ to + 55℃

    IP Grade

    IP65

    Life Span

    at least 50,000 hours

    Connect Wire

    L/N/G

    Housing Material

    Aluminum



    Light distribution curve:

    WW/NW/CW 80W led highbay light Bridgelux Chip Meanwell led driver

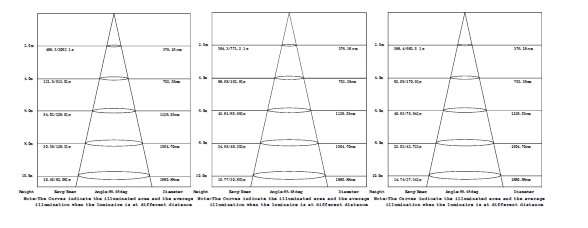

    Effective AAI figure:

    WW/NW/CW 80W led highbay light Bridgelux Chip Meanwell led driver

    Application:

    Workshops, factories, storehouses, toll stations, fuel stations, supermarkets, exhibition halls, gymnasiums.
